Electro-mechanical downhole setting tool for efficient plug or packer setting

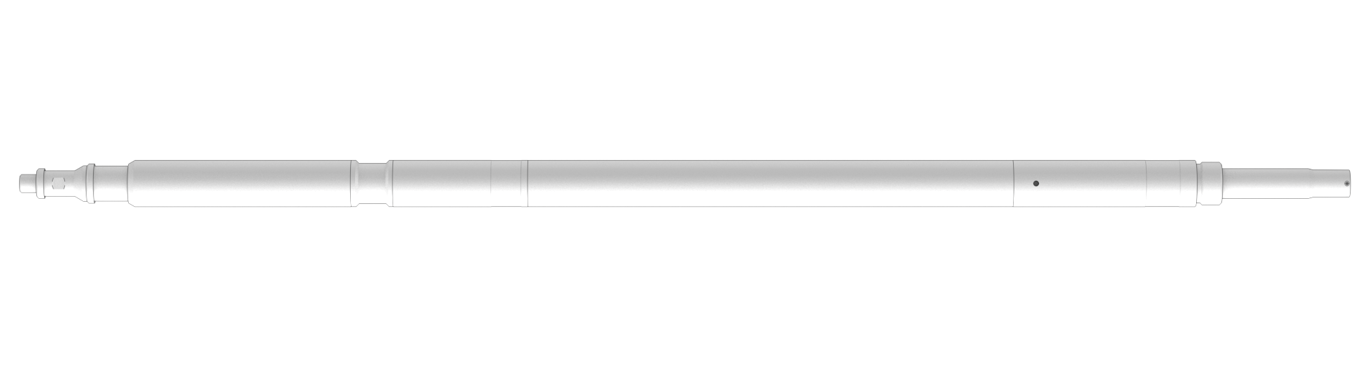

The Welltec® Electrical Setting Tool (WEST) is a next‑generation electro‑mechanical setting tool designed to deliver powerful, repeatable performance without the risks or limitations of explosives or hydraulics.
Capable of generating linear force up to 50,000 lbf and deployable on all major conveyance methods, WEST provides a safer, cleaner, and more efficient way to set plugs, packers, and other wellbore devices. Engineered to provide dependable, consistent performance across diverse intervention environments, WEST delivers precise and controlled setting to multi-task operations.
WEST is ideal for medium- and high-expansion retrievable bridge plug operations utilizing THOR™, VALI™, and ODIN™ plugs.
| Applications |
| Plug setting |
| Packer setting |
| Features |
| Electro‑mechanical, non‑explosive design |
| High-output linear force |
| Multi‑conveyance compatibility (slickline, digital slickline, electric line, coiled tubing) |
| Benefits |
| Enhanced operational safety |
| Controlled setting performance |
| Operational flexibility across a range of deployment scenarios |
| Specifications* | |
| Length | 6.04 → 6.5 ft |
| Tool OD | 2.125” → 2.720" |
| Plug body OD | 2.7 → 4.5" |
| Weight in air | 34.2 → 65.4 lbs |
| Min. Completion ID | 2.375” → 2.845” |
| Max. well pressure | 15,000 psi |
| Maximum well temperature** | 275°F |
| Tensile strength | 50,000 lbf |
| Compressive strength | 50,000 lbf |
| Maximum output force | 35,000 → 50,000 lbf |
| Operational output force | 30,000 → 40,000 lbf |
| Maximum stroke length | 16” |
| Optimal setting speed*** | 0.5”/min |
| Running tool/plug connection | See datasheet for appropriate plug size |
| Setting sleeve connection | 1-3/16”- 12 UN GO or 2-3/4” - 6 Reg Acme Pin GO QC (e-Line) |
| Readout | Force • Spindle |
| * | Dependent upon configuration |
| ** | Up to 6 hours |
| *** | May be increased or decreased but it will affect maximum force |
