Medium-expansion retrievable bridge plug

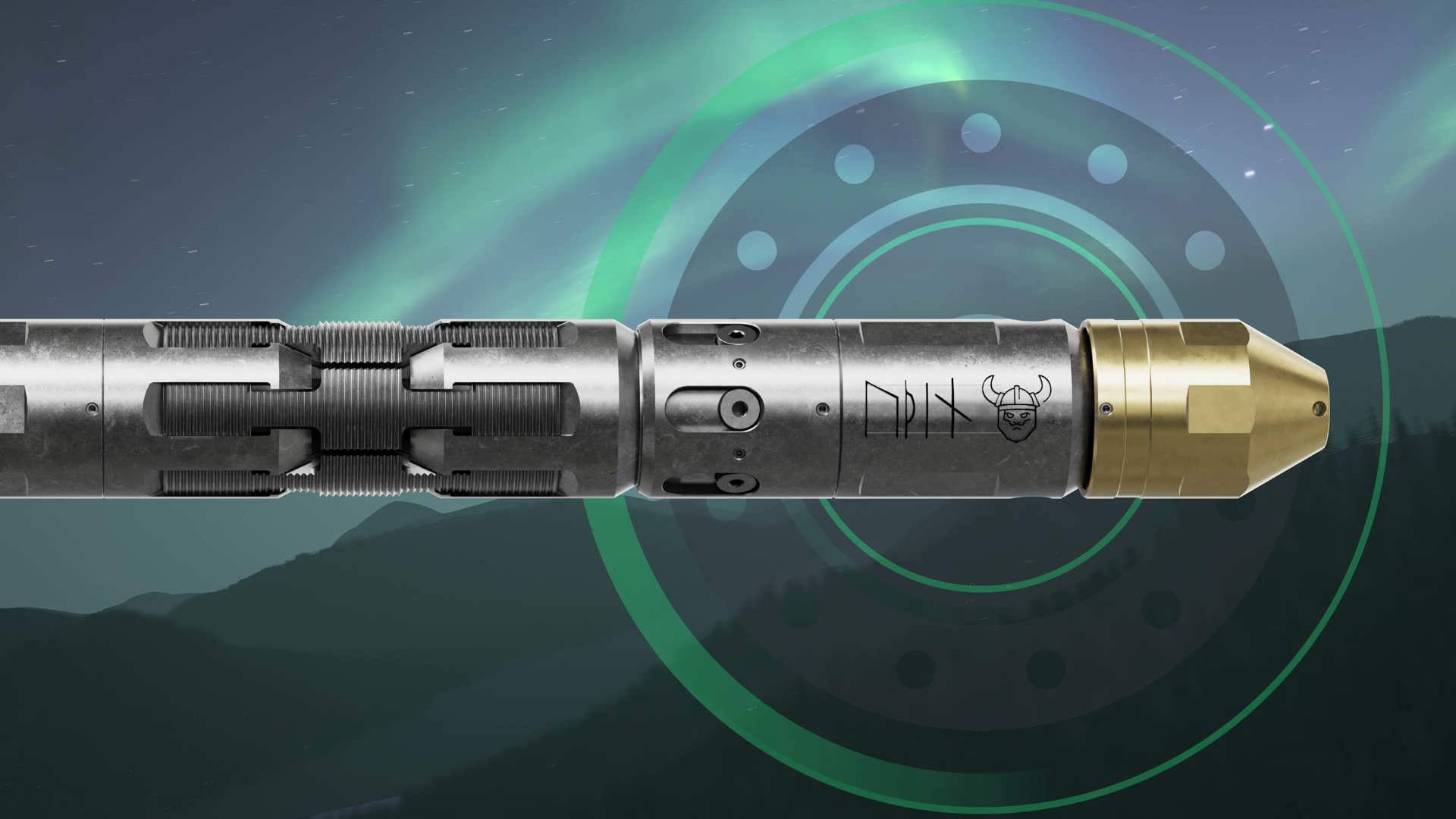

The ODIN™ HPHT Retrievable Bridge Plug is a retrievable bridge plug designed for wireline, slickline, or coiled tubing deployment. With a compact pre-expansion design that enables passage through restrictions like SCSSVs, damaged casing, and nipple profiles, ODIN offers a significant expansion ratio and can therefore accommodate various casing sizes and weights from a single size/design.
Effective sealing is achieved in conjunction with Stellar™, a patented element support system that provides 360° metal-to-metal contact with the full circumference of the casing, combining unprecedented high-pressure sealing with large expansion.
The ODIN High-Pressure High-Temperature Retrievable Bridge Plug is currently available in 4.5”, with additional sizes launching very soon.
Rated up to 15,000 psi and 300°F, ODIN provides gas-tight sealing performance for critical barrier applications.
*Available in Europe, Middle East, Scandinavia, Africa, Central and East Asia, South America, and Asia-Pacific.
| Applications |
| Well barrier during maintenance, workovers, and temporary abandonment |
| Reservoir isolation, water shutoff or treatment |
| Packer and contingency packer setting |
| Plugging completions with damaged nipple profiles |
| Hanging completion accessories |
| Thru-tubing completions |
| High-pressure, high-temperature |
| Features |
| Patented Stellar™ backup technology for continuous metal-to-metal element support |
| Single model covers a wide range of casing sizes with no conversion parts |
| High expansion ratio ensures passage through tight restrictions |
| Staged setting and release for controlled sequencing of slips, backups, and element |
| Active extension returns the element to original OD for maximum retrieval clearance |
| Bidirectional wicker slips maximize contact area while minimizing casing stress |
| Debris-tolerant equalizing and retrieval system |
| Single-trip, two-stage retrieval via internal GS profile (shear-down to equalize, pull to release |
| Rotationally locked components allow partial or full plug mill-out |
| Benefits |
| Unmatched high-pressure sealing integrity with ability to pass through restrictions |
| Maximum operational range with one tool covering multiple casing sizes |
| Maximum operational range with one tool covering multiple casing sizes |
| Reliable running performance through tight or damaged restrictions |
| Safe, controlled retrieval using a two-staged release for predictable recovery |
| Flexible post-set operations with partial or full mill-out capability |
| Specifications* | |
| Tool OD | 3.375 in. |
| Tool length | 12.7 ft |
| Tool weight | 282 lbs. |
| Casing size range | 4.5 in. 9.50 - 21.50# / 5 in. 23.20 - 24.10# / 5.5 in. 40.50 - 43.10# |
| Equalizing force range, straight push (adjustable) | 2,200 → 6,600 lbf |
| Releasing force range, straight pull (adjustable) | 2,200 → 8,800 lbf |
| Setting load range (min/max) | 28,000 → 30,000 lbf |
| Maximum setting stroke | 6.25 in. |
| Setting ID range | 3.395 → 4.154 in. |
| Maximum well temperature | 300°F |
| Maximum well pressure | 15,000 psi |
| Maximum differential pressure | 10,000 psi (V0) or 15,000 psi (V3) |
| GS Pulling tools size | 2.5 in. GS with up-down release |
| Setting Tool Adapter Kit (WLAK) | Baker E4 #10 |
| Qualification standard | ISO 15156:2020 (NACE MR0175) / API 11D1:2022 V3-R, 15ksi / API 11D1:2022 V0-R, 10ksi |
| Availabilty | Middle East, Scandinavia, Africa, Central and East Asia, and South America. |
| * Dependent upon configuration |
